ZAND-AIR Filter instrument for Pathology 100P

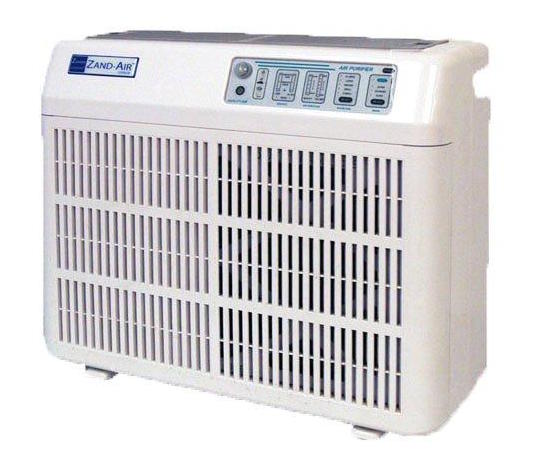

zandair-100pThe ZAND-AIRTM 100P Air Purification System is a portable unit, specifically developed to meet the demands in anatomical pathology and forensic laboratories where formalin and other toxic hydrocarbons are prevalent. They are effective in areas where pathology chemicals are used and regular refilling for automated and manual slide stainers and processors is required.


The ZAND-AIR Four Step Air Purification Process of the 100P

ZAND-AIR™ 100PStep One. Activated Carbon Filter adsorbs toxic chemicals and gases.

The FRONT POSITION Activated Carbon Filter, is a specially formulated mixture of proprietary compounds selected to adsorb all VOCs and CACs in the laboratory environment. Scientifically formulated adsorption media ((including zeolite and potassium permanganate) adsorbs organic hydrocarbons, formaldehyde used in the laboratory.

Step Two: Higher Adsorption of VOCs and CACs

A second Activated Carbon Filter increases the ‘dwell time’ providing a higher adsorption of VOCs and CACs.

Step Three:. Photo-Catalytic Oxidation Destroys Toxic Chemicals and Eliminates Odours from the Air

Photo-Catalytic-Oxidation converts toxic compounds into benign constituents such as water (H2O) and carbon dioxide (CO2). The catalyst is such that it does not wear out or lose its effectiveness as a result of its actions.

Ultraviolet Light acrylic cover Step Four. Ultraviolet Light

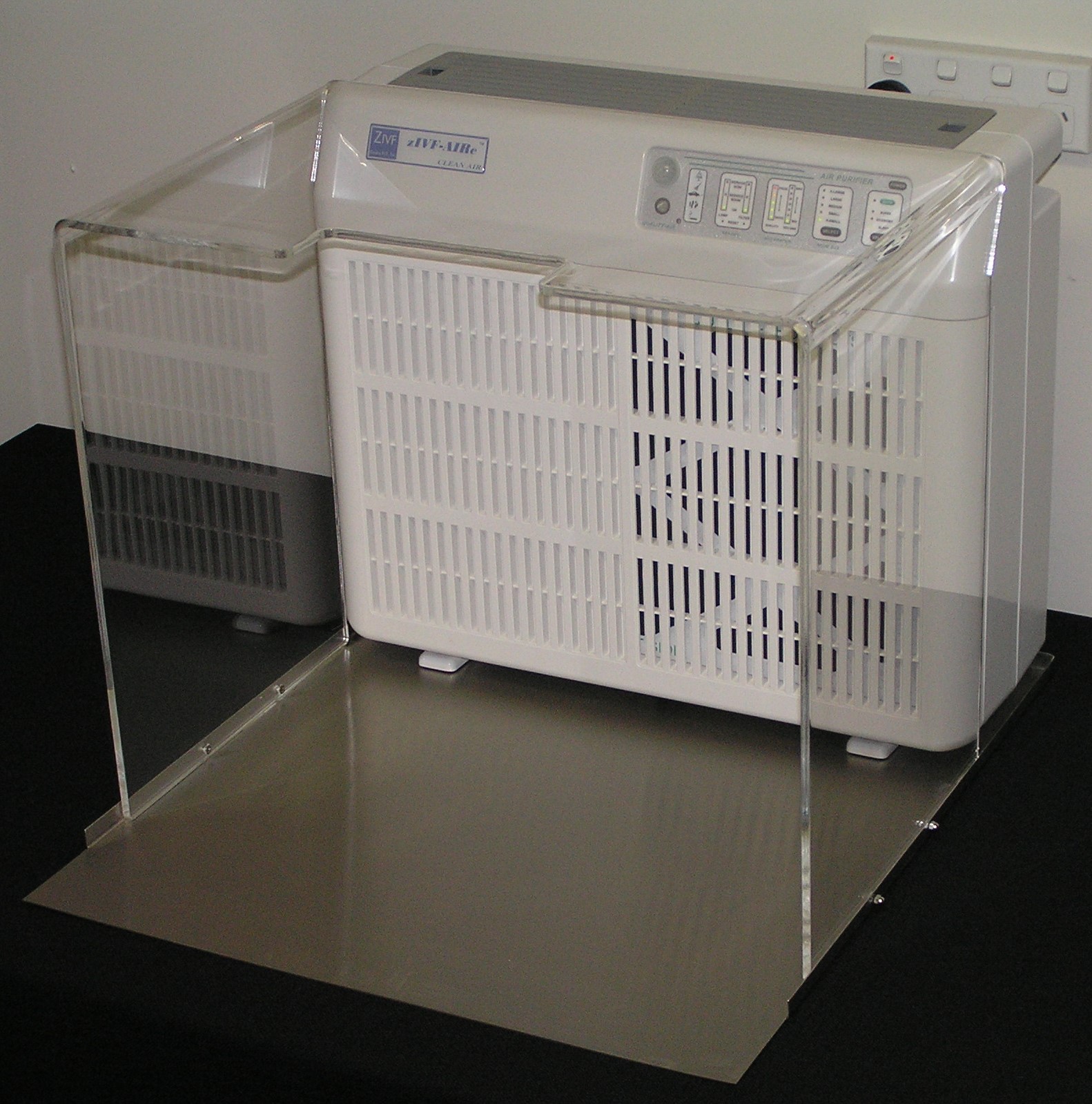

Ultraviolet technology combined with Photo-Catalytic-Oxidation is an important feature of this purification system since germs are easily spread from person to person and by central heating and air-conditioning systems. We offer a special attachment for personnel working in small “Cut-up” and “cover slipping” areas. An acrylic cover over the work area directs airflow in a downward direction and contains fumes coming from open containers. Cat No. ZA 100P-FH Technical Specifications: 100P

Dimensions: 21.5″w X 18″h X 8″d (55cm X 46cm X 20cm)
Weight: 23 lbs. (10.43 kg)
Max Air Flow: 265 cfm /7.5 m3 per minute
Max Watts: 110 watts
Voltage: 120v – 60hz /220v – 50hz
Blower: Reversed – curved motorized impeller
Catalyst: Metal oxides
U.V. Range: 254 nm (produces no ozone)
Gas Adsorption: Two stage activated carbon media
Application: 2,000 sq. feet max./185 sq. meters
Service: U.V. Lamps -1 year, Filters – 6 months
Warranty: 2 year limited warranty on all components excluding light and filters

za-100p-3 Catologue Number ZA 100P Filter for the zIVF-AIRe™100P (Two stage Carbon) Cat No. ZA RK401 UV Germicidal Lamp for zIVF-AIRe 100C & 100P za-100p-2Cat No ZA RK203
