Human Specific Selection
The two and four-chamber, four-chamber, 20 micron CellVision slides are ideal choice for any CASA system. Our automated and patented production process ensures accurate and reproducible chamber-depths. Every slide on the production line is checked with a laser interferometer. Slides are specially coated to improve motility as compared to competitive slides. Each lot tested and verified non-toxic. Available in both vertical and horizontal configurations.

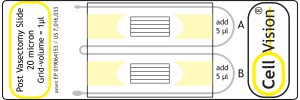

The special Post Vasectomy slide allows users to count 1 mircoliter of semen Type no. CV1020-PV

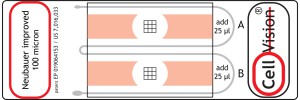

Counting in compliance with the WHO manual the 100 micron disposable haemocytometer with Neubauer improved ruling is a simple and accurate option. Type No CV 11-NI
The CE-marked disposable glass counting chambers are developed for semen analysis.
- Disposable replacement of the widely
known re-usable hemocytomers - All kind of grids and heights
- Patented techniques
- Fixed coverslip
- No need for an eye piece reticle
- Semen concentration and motility
- Hygienic
- Easy to use
- Accurate and reliable
- Cost effective
- Also special post-vasectomy slides
- Manual analysis and CASA system
| Product | Height | Grid | Number of Chambers |
Orientation | Sample Volume |
Shelf Life |
|---|---|---|---|---|---|---|

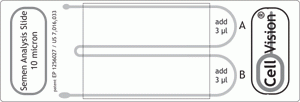

CV 1010-2ch |
10 micron | n.a. | 2 | horizontal | 3 microliter |
24 months |

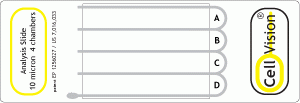

CV 1010-4ch |
10 micron | n.a. | 4 | horizontal | 3 microliter |
24 months |
CV 1010-4cv |
10 micron | n.a. | 4 | vertical | 1,5 microliter |
24 months |

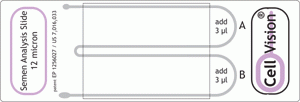

CV 1012-2ch |
12 micron | n.a. | 2 | horizontal | 3 microliter |
24 months |

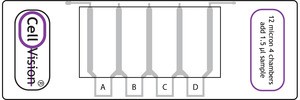

CV 1012-4cv |
12 micron | n.a. | 4 | vertical | 15 microliter |
24 months |

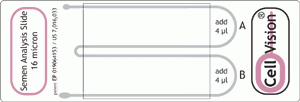

CV 1016-2ch |
16 micron | n.a. | 2 | horizontal | 4 microliter |
24 months |

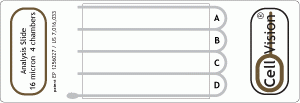

CV 1016-4ch |
16 micron | n.a. | 4 | horizontal | 3 microliter |
24 months |
CV 1020-2ch |
20 micron | n.a. | 2 | horizontal | 5 microliter |
24 months |
CV 1020-4ch |
20 micron | n.a. | 2 | horizontal | 5 microliter |
24 months |
CV 1020-2cv |
20 micron | n.a. | 2 | horizontal | 5 microliter |
24 months |

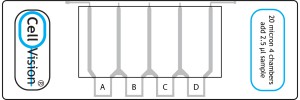

CV 1020-4cv |
20 micron | n.a. | 4 | vertical | 2,5 microliter |
24 months |

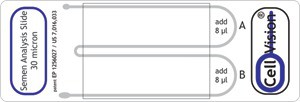

CV 1030-2ch |
30 micron | n.a. | 2 | horizontal | 8 microliter |
24 months |

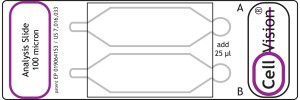

CV 1100-2ch |
100 micron | n.a. | 2 | horizontal | 25 microliter |
24 months |
CV 1010-10² |
10 micron | 10 x 10 (Makler) |
2 | horizontal | 3 microliter |
24 months |
CV 1020-10² |
20 micron | 10 x 10 (Makler) |
2 | horizontal | 5 microliter |
24 months |
CV 1020-PV |
20 micron | Post vasectomy |
2 | horizontal | 5 microliter |
24 months |
CV 1100-NI |
100 micron | Neubauer Improved |
2 | horizontal | 25 microliter |
24 months |

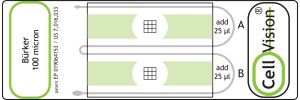

CV 1100-B |
100 micron | Bürker | 2 | horizontal | 25 microliter |
24 months |

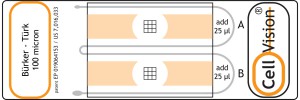

CV 1100-BT |
100 micron | Bürker-Türk | 2 | horizontal | 25 microliter |
24 months |

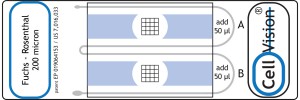

CV 1200-FR |
200 micron | Fuchs Rosenthal |
2 | horizontal | 50 microliter |
24 months |
